[WORKLOG] AMD2400's P180B - Final Stage, Huge 1260 external rad

Discussion in 'Extreme and Water Cooling' started by AMD2400, Jan 14, 2012.

Tags:
  1. AMD2400

    AMD2400 Member

    Joined:
    May 28, 2004
    Messages:
    659
    Location:
    Sydney

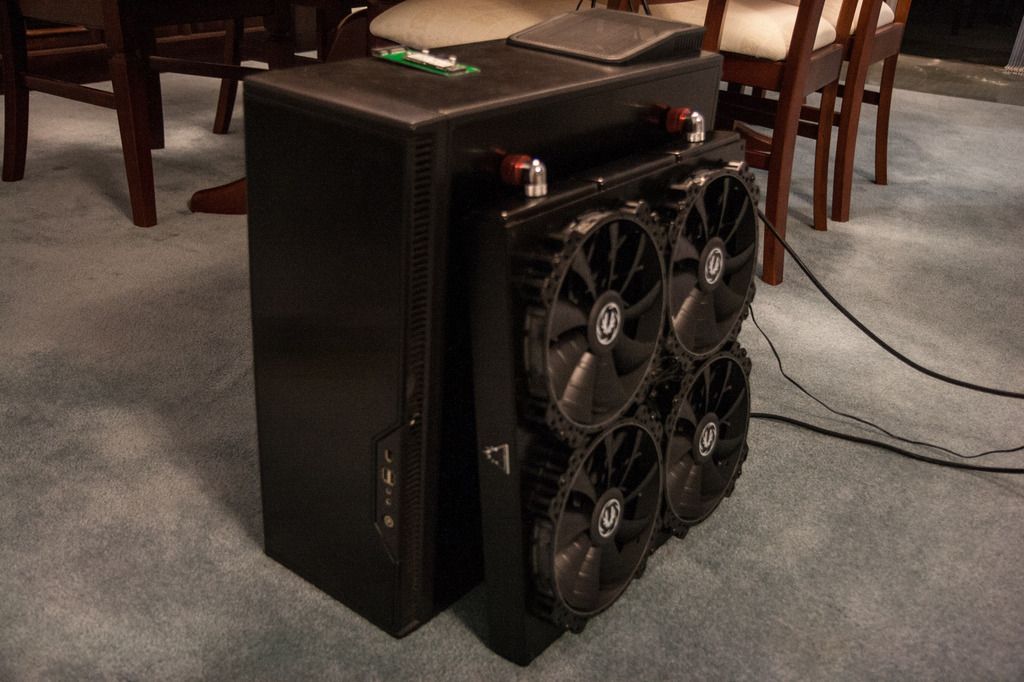

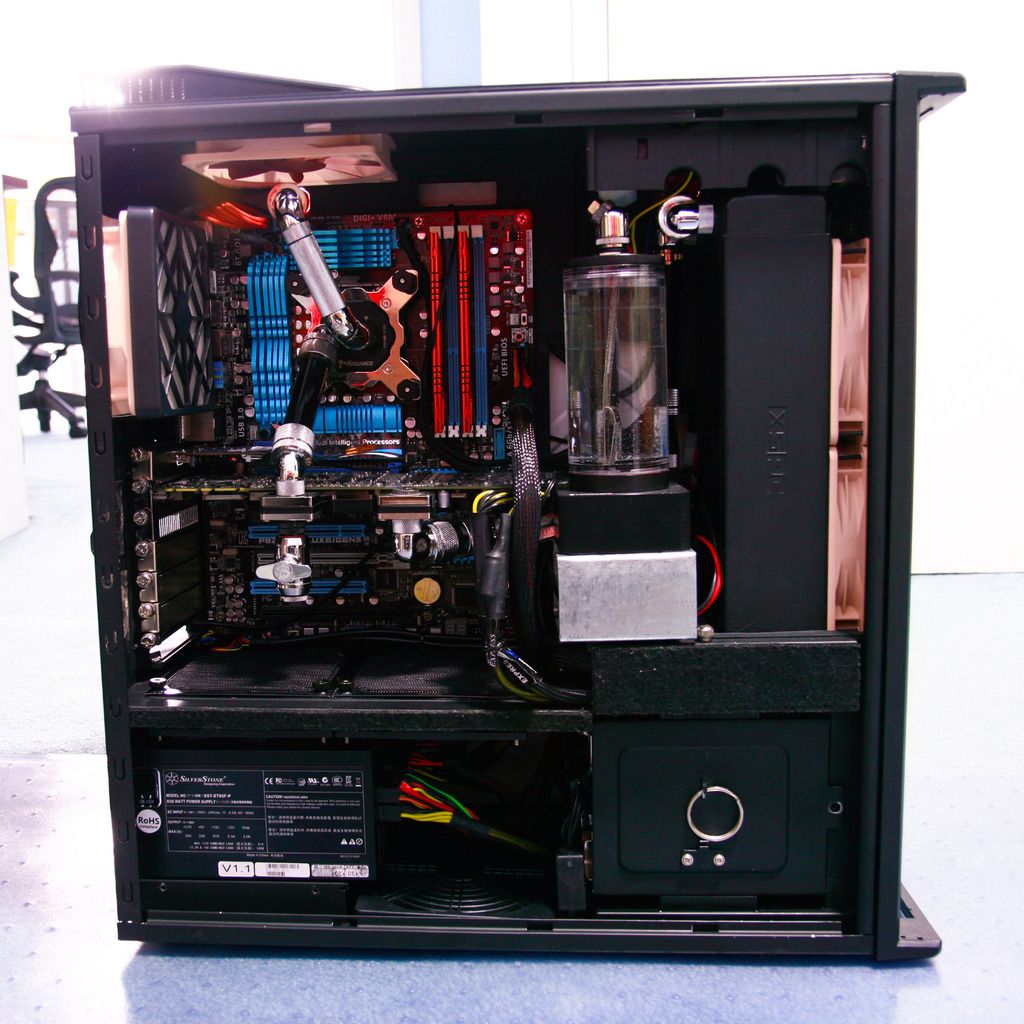

    Progress: Back in action! Looking pretty as ever, need to sort out a new PSU!

    [​IMG]

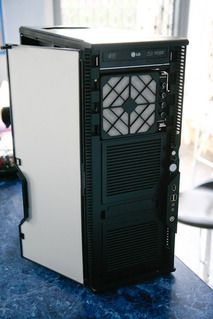

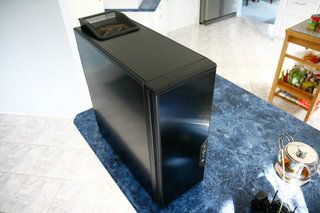

    The Case:

    Antec P180B

    [​IMG]

    Pretty boring looking case, but i always liked the look of them. Picked up one for chips a while back and began cutting it up. Its now up to a point where there are two 240mm radiators inside, and the internals have been fully resprayed.

    The Aim:

    Watercool the P180B internally, More black + bling, Stock look/ function as much as possible.

    As much rad as possible :lol:

    Future:
    • New PSU

    More Photos:

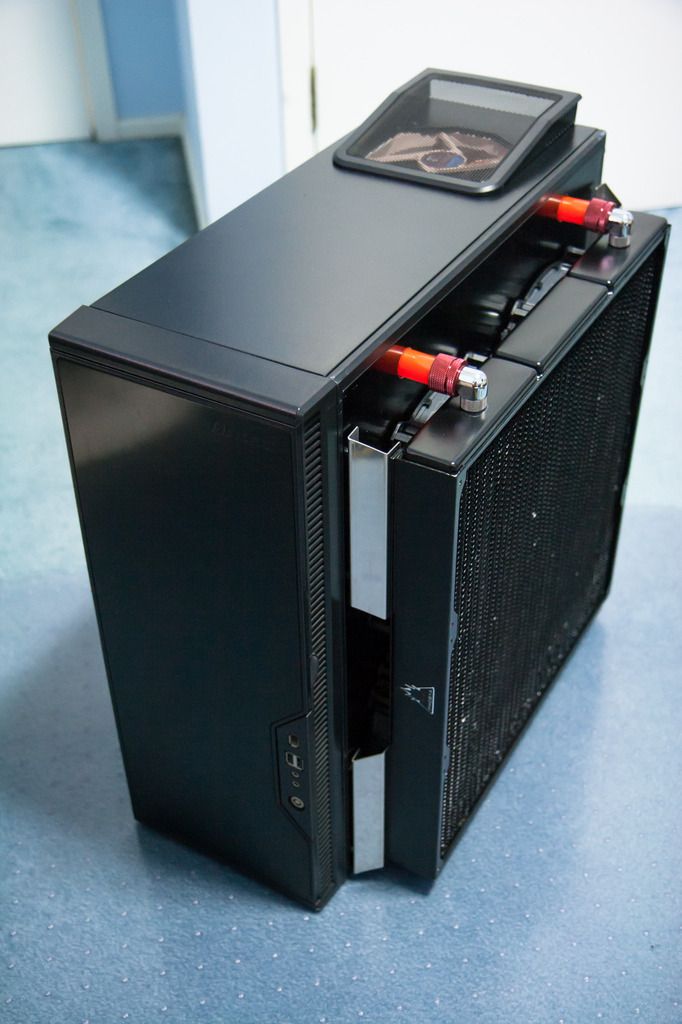

    [​IMG]

    [​IMG]

    The System:
    • Era: LGA 1155
    • CPU: i5 3570K
    • Motherboard: ASUS P8Z68 Deluxe Gen3
    • RAM: 2x8GB G.Skill Ares C10 1600mhz
    • GFX: ASUS 580GTX
    • Power: SilverStone Strider 850 watt
    • Control: Corsair Link Commander Mini (main) + GRID+ (External rad)

    Water Cooling Setup:

    • Lots of 1/2" bitspower compression fittings
    • MCP655 with bitspower V2 Top and mod kit.
    • Koolance D5 with koolance top + res
    • Koolance 380i CPU block
    • Koolance 580GTX Full cover block
    • Tygon 3/4" OD tubing
    • Primochill 3/4" OD Orange Tubing
    • 4x200mm Bitfenix Spectre pro fans on 1260 Radiator
    • 2xNoctua NP-P12 120mm on main radiator
    • Phoyba 1260 Super Nova Extreme mounted externally
    • XSPC RX240 Radiator mounted internally

    Last edited: Apr 19, 2015
  2. OP
    OP
    AMD2400

    AMD2400 Member

    Joined:
    May 28, 2004
    Messages:
    659
    Location:
    Sydney
    The Old Build:

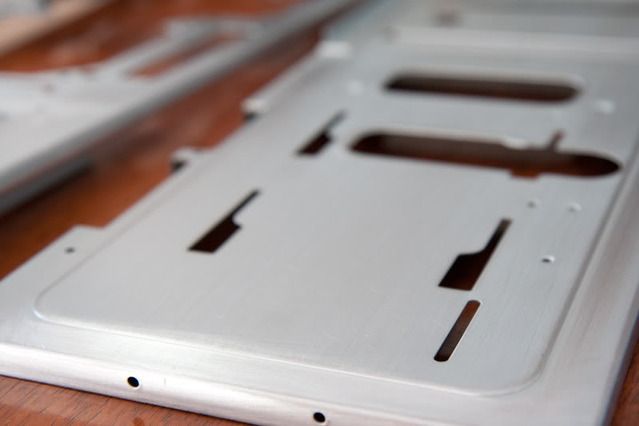

    Sanded ready for paint:

    [​IMG]

    Painted and water setup mounted:

    [​IMG]

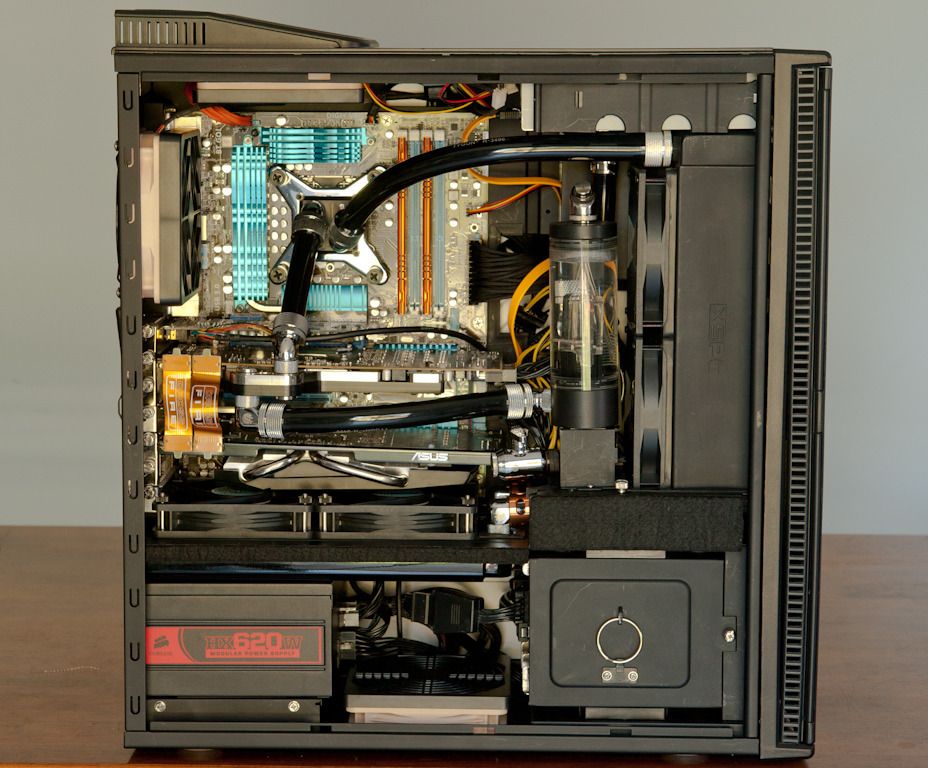

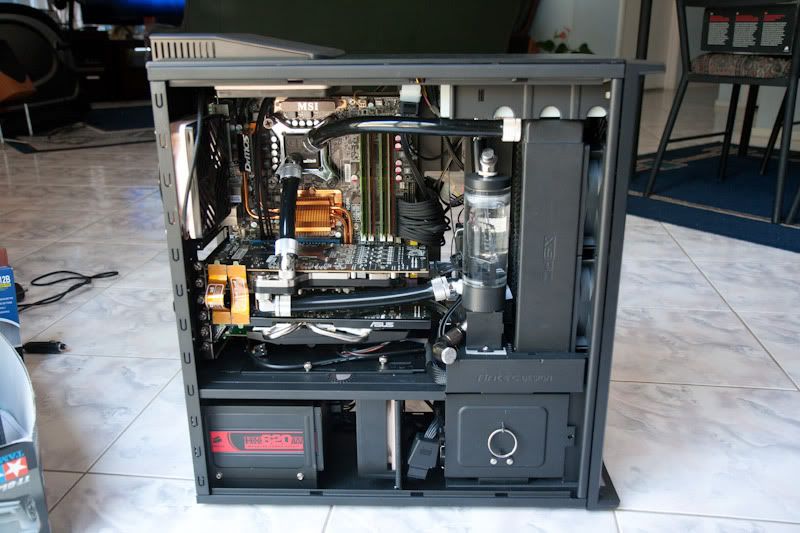

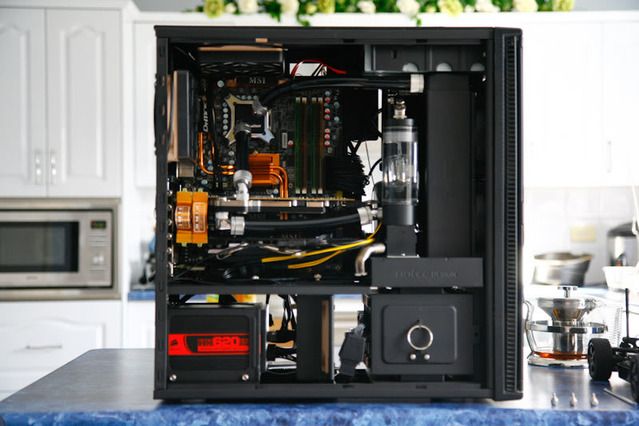

    Finished as of Jan 2012:

    [​IMG]

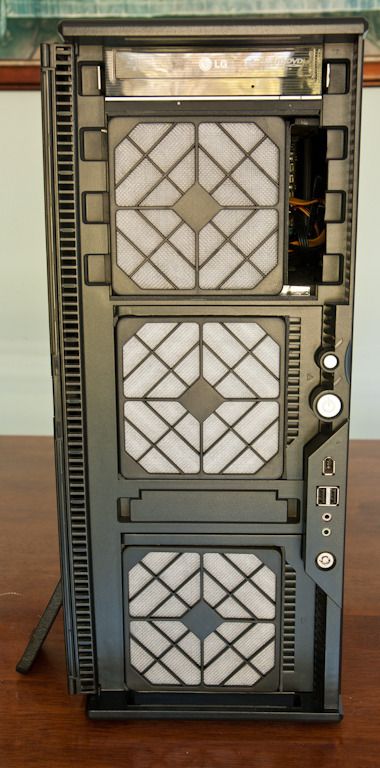

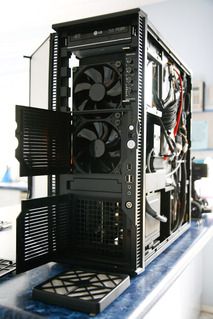

    Front End:

    [​IMG] [​IMG]

    Last edited: Sep 3, 2012
  3. OP
    OP
    AMD2400

    AMD2400 Member

    Joined:
    May 28, 2004
    Messages:
    659
    Location:
    Sydney
    STAGE 2:

    Due to one of my fittings springing a leak i decided it was time to strip the loop and fix everything up.

    I also had more smarts this time around and wanted a 2nd 240mm radiator in the bottom of the case so this is what i dreamt up:

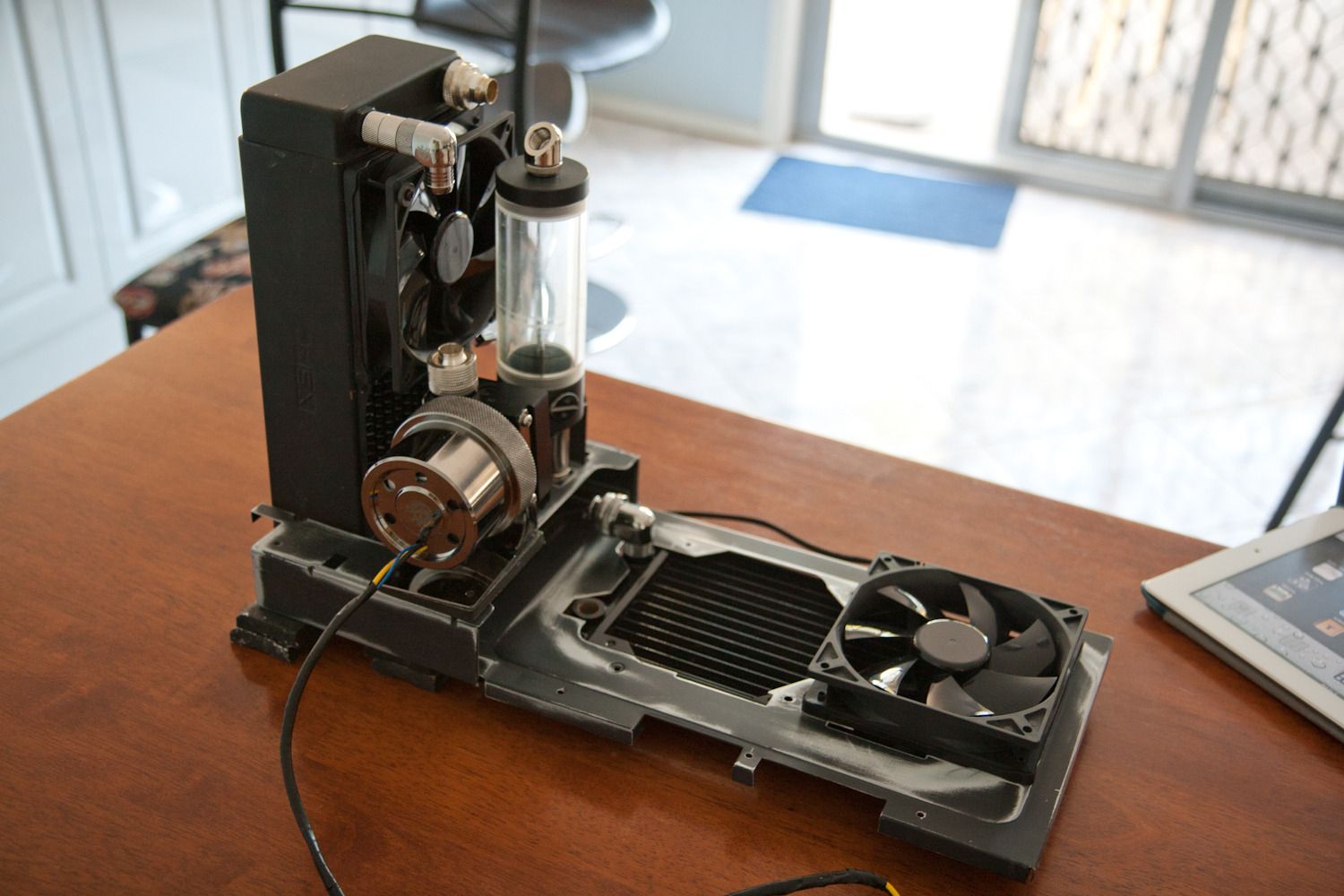

    [​IMG]

    So the RX is still gonna be on the front line, but those Noiseblockers are going on the rear of it. The Black Ice GT Stealth 240 will be mounted under the middle floor, with some S-flex fans pulling up top.

    The setup is abit unknown territory to me, as i am sorta running the rads at the front and back of the pump. I tried setting up a mock loop, but i didnt have enough time to bleed it properly. I'm hoping the pump will have some sort of suction from being fed by two IN ports, but i wont know till i have the loop setup. If it doesent work out, ill probally end up blocking the res to pump link so water will have to flow through the second Black ice rad.

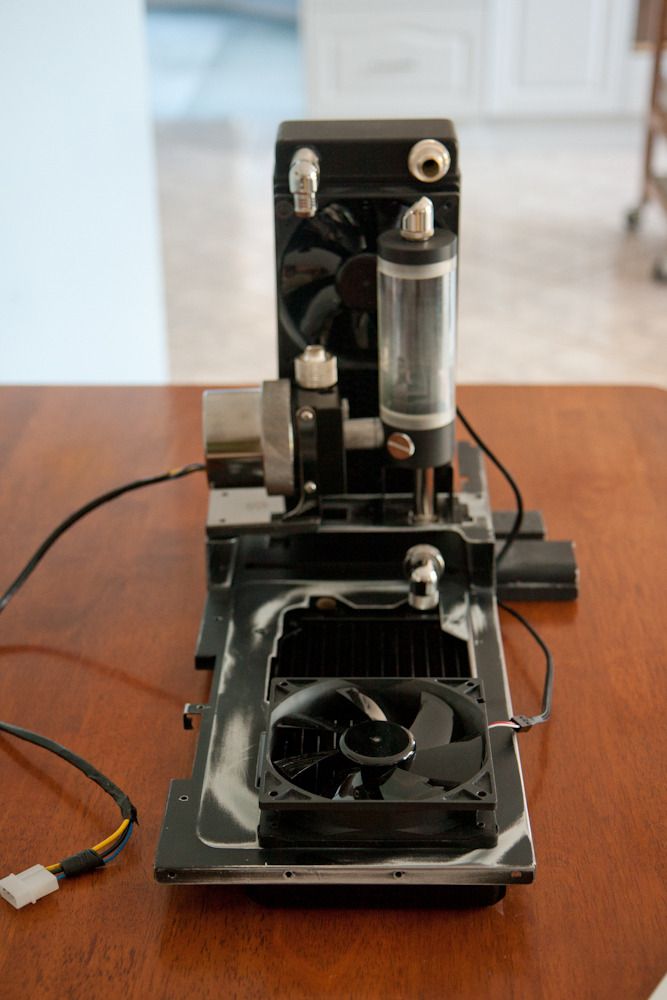

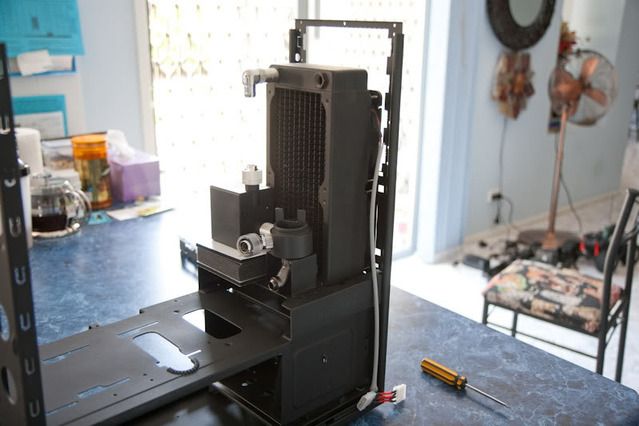

    [​IMG]

    all seems to line up nicely :leet:

    Spent the weekend re spraying the paint, and its looking better then ever, much smoother due to more sanding.

    Didn't end up going orange, but i did buy some Orange Moonsoon free center compressions, so i will have some orange in this build. Almost tempted to put orange coolant, but this case wont have a window :)

    Glad the mindless sanding/filing/ spraying phase is over, here on in is were the fun begins!

    Last edited: Oct 7, 2012
  4. OP
    OP
    AMD2400

    AMD2400 Member

    Joined:
    May 28, 2004
    Messages:
    659
    Location:
    Sydney
    Nearly done with this build...RA'ed my fan controller because it is making a whole lot of electrical noise :thumbdn:

    Cables are a mess, but its all up and running now :weirdo:

    Changes:

    • U channel molding throughout
    • Phobya rad seal throughout
    • Additional 240mm rad stealth mounted to the floor, running a more like a glorified res
    • Additional 120mm intake on the bottom
    • MCP655 BP bling'ed up pump and top
    • Monsoon orange fittings for the bottom res
    • BP drain port
    • Cut out the front fan covers so i can fit the new filters

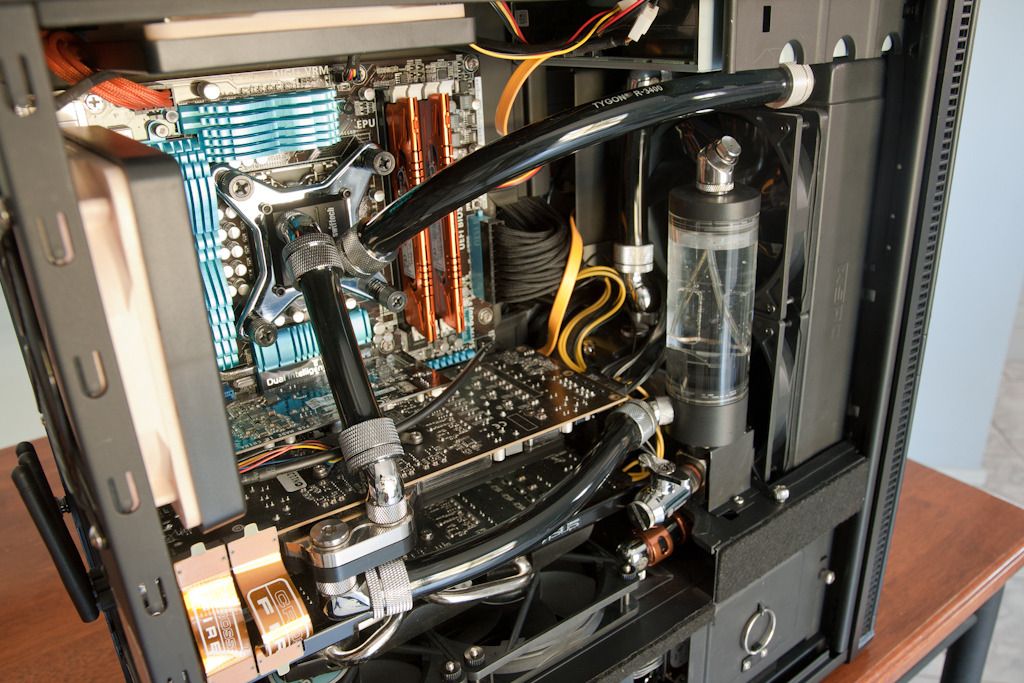

    [​IMG]

    [​IMG]

    [​IMG] [​IMG]

    Will take better pics when my fan controller arrives, with hopefully better cable management also :thumbup:

    The case still looks stock which i am proud of, with no unsightly radiators or watercooling bits hanging off it :D

    Last edited: Oct 7, 2012
  5. OP
    OP
    AMD2400

    AMD2400 Member

    Joined:
    May 28, 2004
    Messages:
    659
    Location:
    Sydney
    FINAL FORM!

    FINAL FORM!

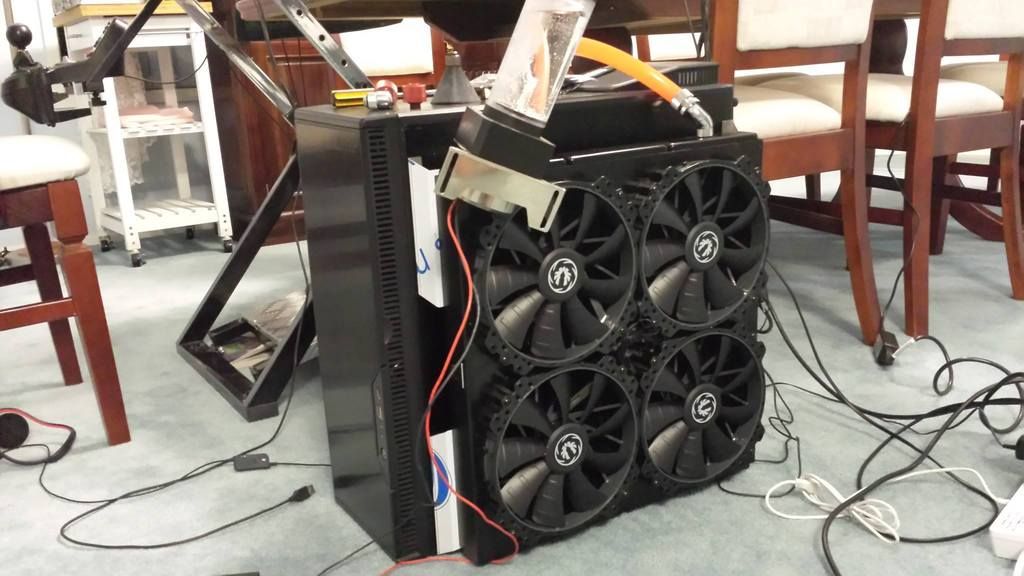

    [​IMG]

    The final form of this build will be to run the following:
    • Phobya 1260 Rad sidemounted with 4x200mm Bitfenix Spectre Pro fans
    • RX240 Rad with 2x120mm Noctua F12 Fans
    • 2xD5 pumps with a Koolance Res
    • A whole lot of BP fitting with 1/2ID 3/4 Tube
    • 3570k with Koolance 380i CPU block on top
    • Hopefully 2x580 GTX'es under Koolance blocks
    [​IMG]

    [​IMG]

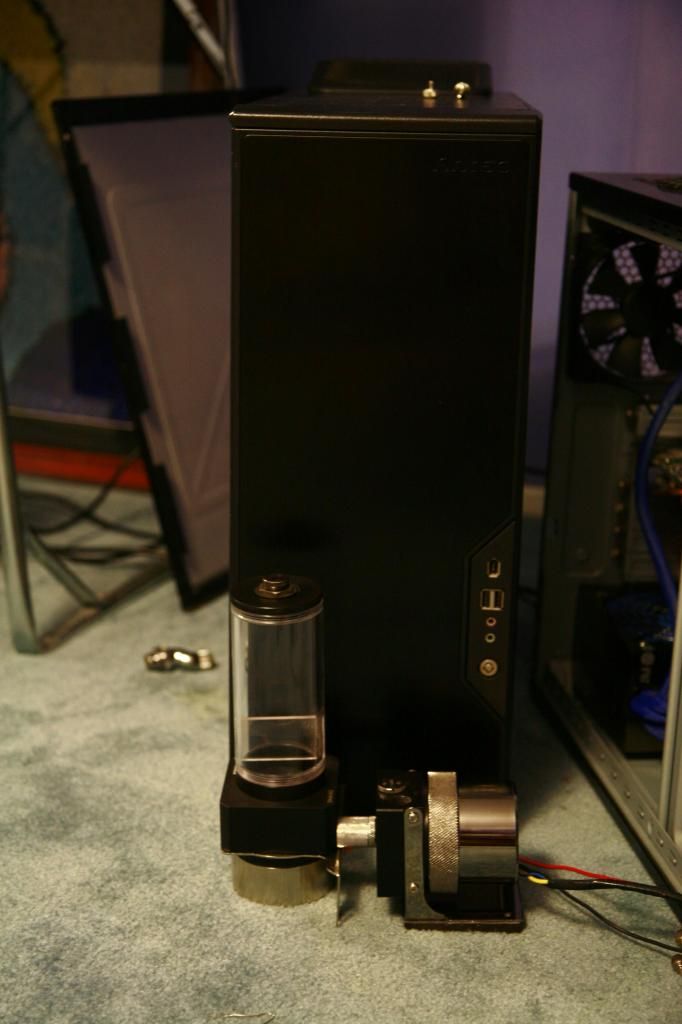

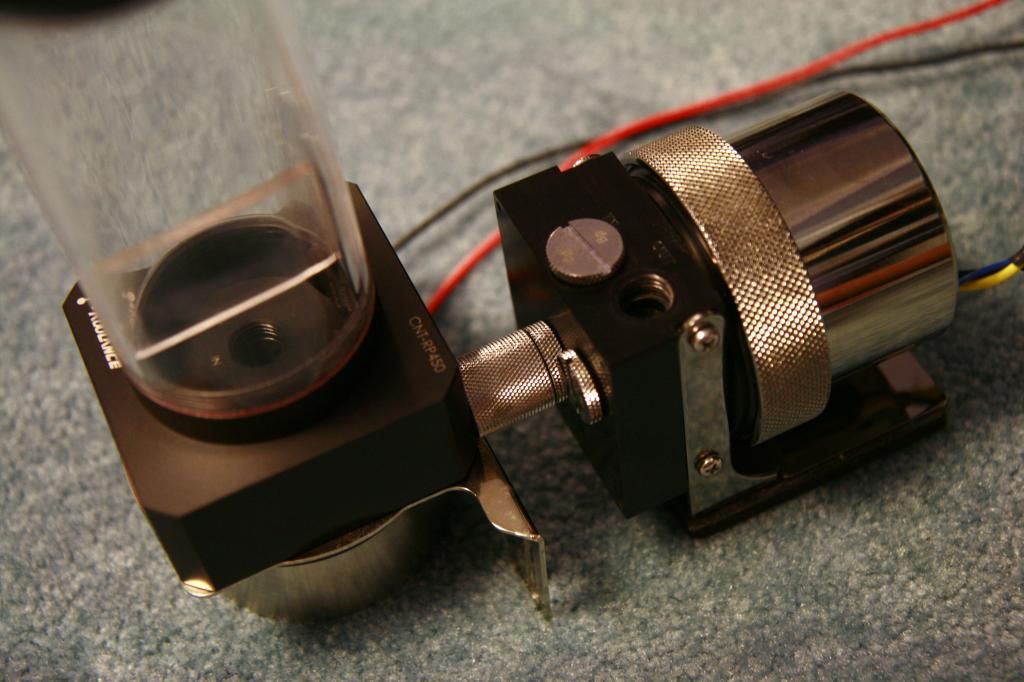

    Test bleeding the rad and the D5+res combo unit:
    [​IMG]

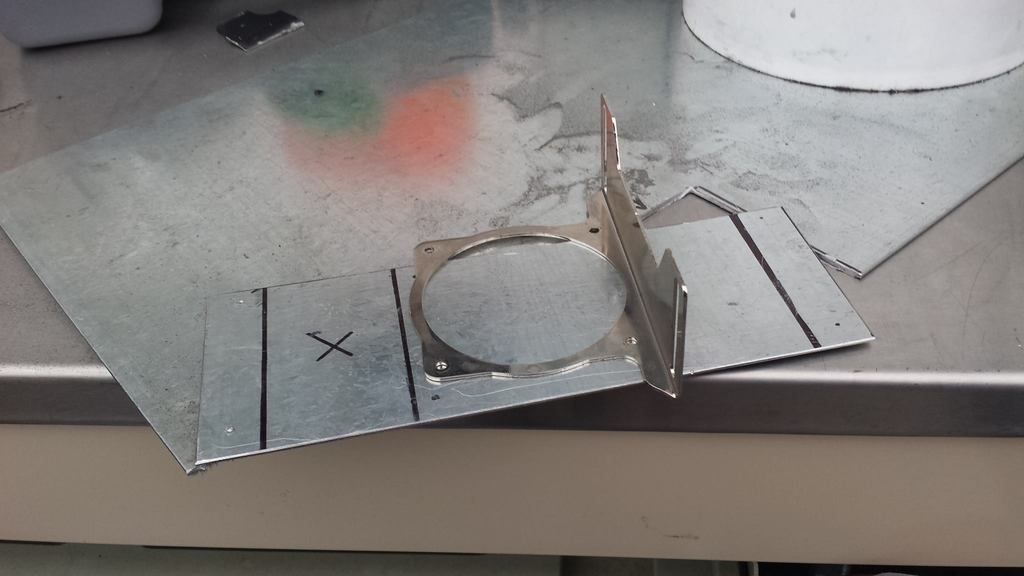

    Me fabbing up the koolance D5+res combo mount:
    [​IMG]

    Then after a whole easter weekend of cable routing and reinstalling all the components, this was the final result:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

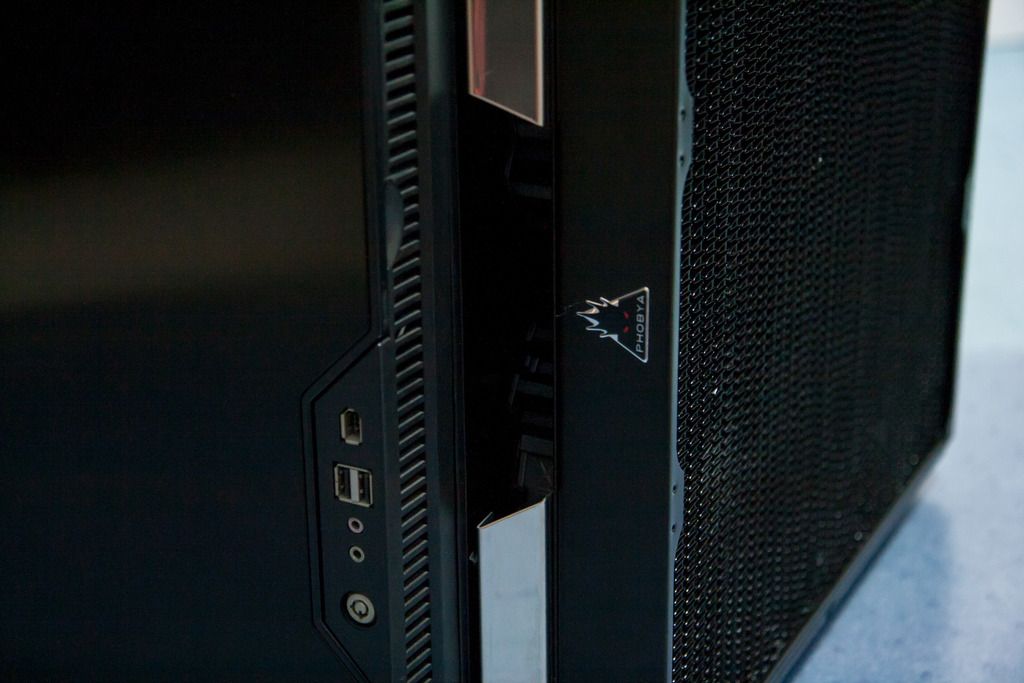

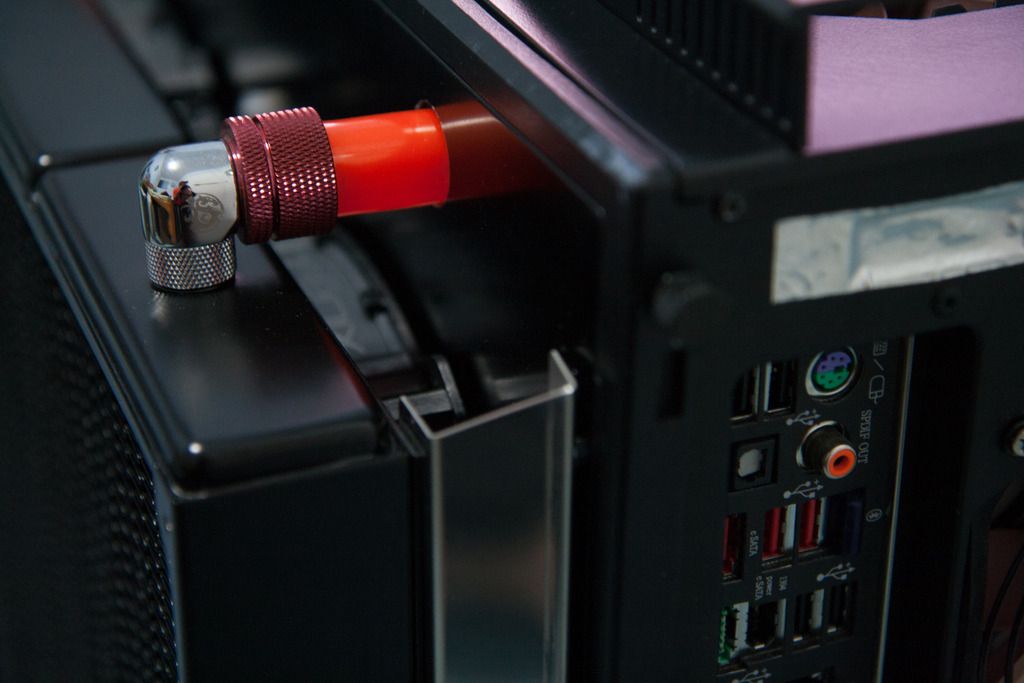

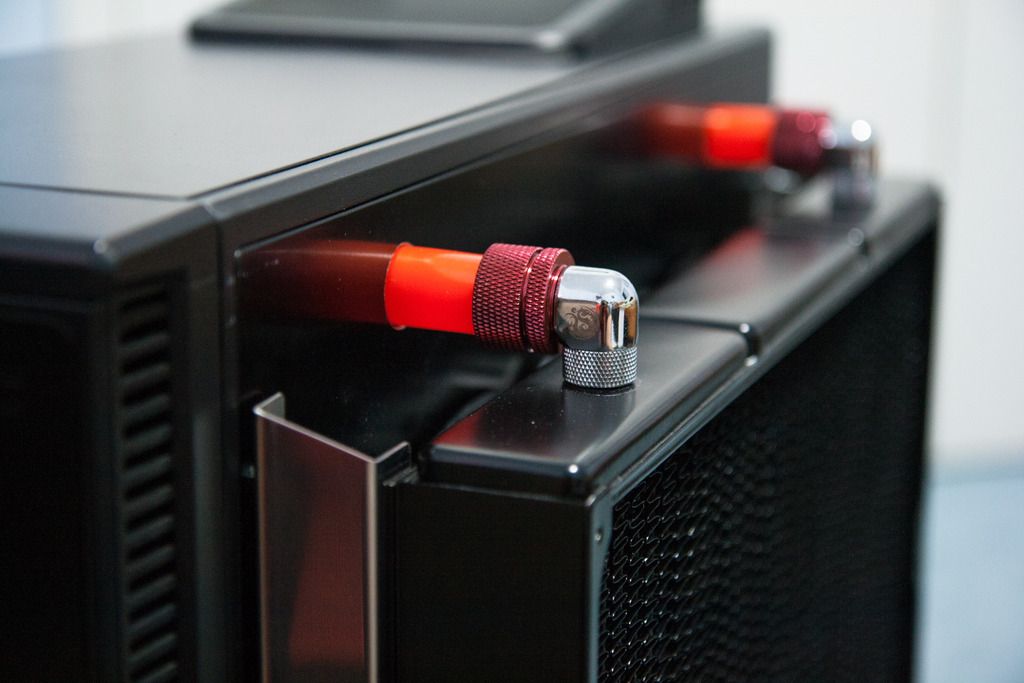

    Check out my hard tubes man :lol:. The internals mostly remain unchanged, i have put in some 120mm fans in the middle floor of the computer, and englarged the holes on the top of the motherboard tray to accomodate the tubes, but thats it.
    [​IMG]

    With the huge water surface area this system now has, i find i can run the computer without the side panel fans on, and temps would still be great. I have pushed the system water temp to around 50 degrees with all the fans off, and the cpu temp /GFX temp all stayed within acceptable levels.

    All in all this project has burned a whole heap of my time, not to sure if id ever undertake such a project again, but overall extremely satisfied i made this case my own :thumbup:

    That said, i still feel its not done, i now want to make the system ultra quiet and ive got some plans to get it there.

    Stay tuned i guess :D

    Last edited: Apr 19, 2015
  6. IMtech

    IMtech (Banned or Deleted)

    Joined:
    Jul 1, 2011
    Messages:
    1,430
    Location:
    Cheeseland, France
    Great work! Looks great with the pump, res and rad all bundled together at the front! :) :thumbup:

  7. Spyfox

    Spyfox Member

    Joined:
    Nov 28, 2010
    Messages:
    1,270
    nice fitment
    and good work with the fan controller :thumbup:

  8. Creekin

    Creekin (Taking a Break)

    Joined:
    Jun 21, 2003
    Messages:
    10,109
    wow! nice build and log :thumbup:

    get yaself a D5 and some BP 90s

  9. Square4

    Square4 Member

    Joined:
    Jan 25, 2010
    Messages:
    253
    Location:
    2039
    Where does the tube from the bottom of the res go?
    Drain or another rad?

  10. IMtech

    IMtech (Banned or Deleted)

    Joined:
    Jul 1, 2011
    Messages:
    1,430
    Location:
    Cheeseland, France
    It goes back to the future... :lol: ;)

    I think it's a drain tho... ;)

  11. Creekin

    Creekin (Taking a Break)

    Joined:
    Jun 21, 2003
    Messages:
    10,109
    yeah looks like a drain from this pic
    [​IMG]

    lota pics in this thread
    didnt all load for me first time..

  12. Square4

    Square4 Member

    Joined:
    Jan 25, 2010
    Messages:
    253
    Location:
    2039
    There's so much going on in that little corner of the case it's hard to tell.
    But it's still a great job, spraypainting your own parts is a trial and reward beyond anything else.

  13. IMtech

    IMtech (Banned or Deleted)

    Joined:
    Jul 1, 2011
    Messages:
    1,430
    Location:
    Cheeseland, France
    Yeah took me a couple of good looks to figure it out too... :lol:

  14. Cask

    Cask Member

    Joined:
    Nov 30, 2011
    Messages:
    759
    Location:
    Gold Coast
    shit dude, that is one mean looking system, a proper "build" type of job

  15. OP
    OP
    AMD2400

    AMD2400 Member

    Joined:
    May 28, 2004
    Messages:
    659
    Location:
    Sydney
    Cheers for the replies guys, this project really tested my patience. Hopefully ill be more patient in future builds and be a little more creative.

    Sorry if i went overboard with the pics lol :p

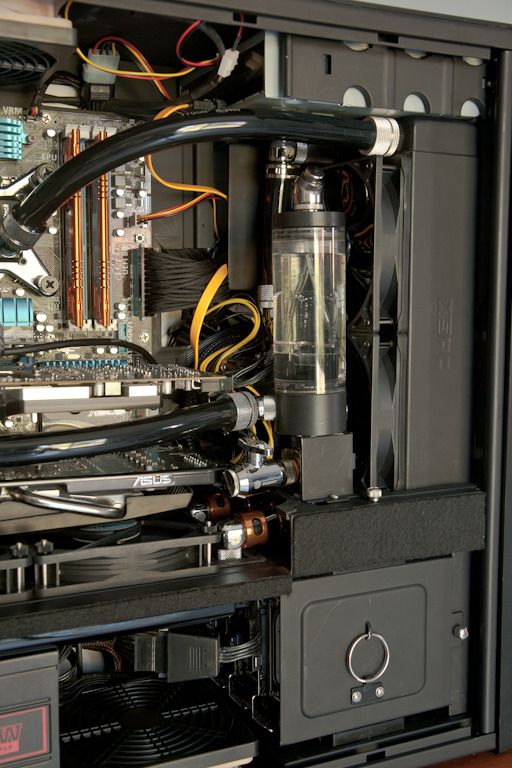

    Yea it's a drain valve comprised of 2x90 degree Phoboya fittings. Got them when the koolroom was selling em for cheap. There is alot of flex in them, but hasnt leaked yet so thats a good thing.

    Oh and at the top of the res is a 45 degree fitting with a Koolance pressure release valve, purely for looks.

    A Variable speed D5 is next of the cards, are they that much quieter? strange that the D5 has barbs straight on the pump :confused:.

  16. Creekin

    Creekin (Taking a Break)

    Joined:
    Jun 21, 2003
    Messages:
    10,109
    mines silent :thumbup:
    laing D5s are an industrial pump, not originally designed for pc wcing
    thats why 3rd party tops and restops exist
    http://www.thekoolroom.com/category/pump-tops/

    i gota heap of those phobya fittings from tkr also
    but was too scared to use them after feeling how loose they are and how cheap the finish was...thats what turned me off the brand from the start
    but tbh the rest of the stuff i have seen since has all been decent

  17. miicah

    miicah Member

    Joined:
    Jun 3, 2010
    Messages:
    6,144
    Location:
    Brisbane, QLD
    You're right about the DCP4.0 it's quite noisy; also damn you for making what I couldn't!

    I like the placement of the fan controller, that's some smart engineering.

  18. Creekin

    Creekin (Taking a Break)

    Joined:
    Jun 21, 2003
    Messages:
    10,109
    +1 this
    nice of them to label it the right way up for you :lol:
    love the little res/pump/rad combo stack too :thumbup:
    ocau trading forums ftw :thumbup:

  19. phi

    phi Member

    Joined:
    Aug 31, 2001
    Messages:
    135
    Location:
    Sydney
    I have an Antec P180, but in with envy with yours though.... love what you did with your own custom mod.

    I really like that the tubing is pretty much straight and no twists'n'turns like a pretzel. Airflow should literally flow really well without obstructions in the way.

    With all those filters i reckon it would filter out dust just as good as a Dyson DC-Clean ...lol

    Well Done!

    Last edited: Jan 15, 2012
  20. OP
    OP
    AMD2400

    AMD2400 Member

    Joined:
    May 28, 2004
    Messages:
    659
    Location:
    Sydney
    Yea just checked them out, they would look sweet in my rig! I just cbf measuring and planning again whether it would fit or not. Totally gonna go with one next build tho.

    Phobya i thought was well respected anything bar their fittings, i remember tkr not even branding them on their site as Phoyba lol.

    Man, you were the inspiration! Really wanted a front rad layout, and if i didnt want that damned hard drive compartment on the bottom i would of went a front mount 360 rad. I do have a spare P180B here so i might just do that :leet:

    Any more progress on your build? Would be great to see how it turned out.

    These 3.5 inch fan controllers have a nice reputation, ive seen one on other great build :thumbup:. I would of went the aqua LT fan control route if it didnt cost so fricking much. But ill definately be more ambitious next build!

    Probally keep this thread alive. I've got to experiment with fan direction, and fix up some minor issues anyways :upset:
