DIY Monitor Stand - Cheap - Easy - Effective

I thought I would share this one due to being so effective and easy to build.

I got all the bits and pieces from my local Bunnings store.


What I used:

• Pine board - 240x19mm @ 1.8M (I used a damaged board, I got it cheaper at $6 and cut off the damaged part. It never hurts to ask for a discount!)
• 4x Furniture legs. (They're plastic but very effective, only $3.55 each and very easy to paint if you want to change the colour.)
• 2x Pine rounded edging - 30x8mm @ 2.4M - $3.86 each. (more than enough to cover any mis cuts.)

Realistically if you wanted a really basic stand you wouldn't need the pine edging. I opted to do this not only to hide the base of the furniture legs but to make it look nicer as well.
With the above bits the total comes to $27.90.


And the common stuff which you might already have:

• Screws, glue, putty, varnish, sandpaper, ect.

Now it's time for pictures.

As simple as it gets. No varnish or edging. I ended up cutting this down a little bit because it was too wide. I only wanted my monitors to just be on the mount. Notice the base of the furniture legs.

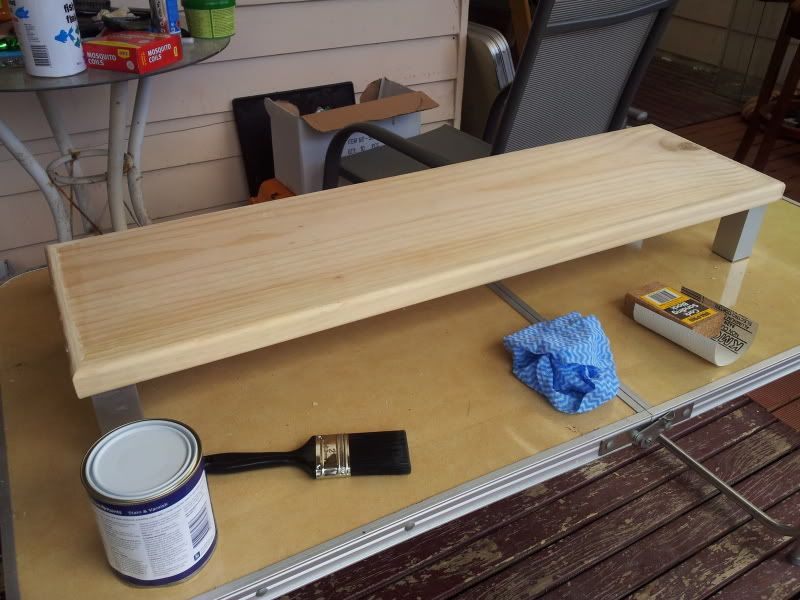

Here I've applied the pine edging. Simple miter cut with some glue, then filled the gaps with putty. Just about to sand it down.

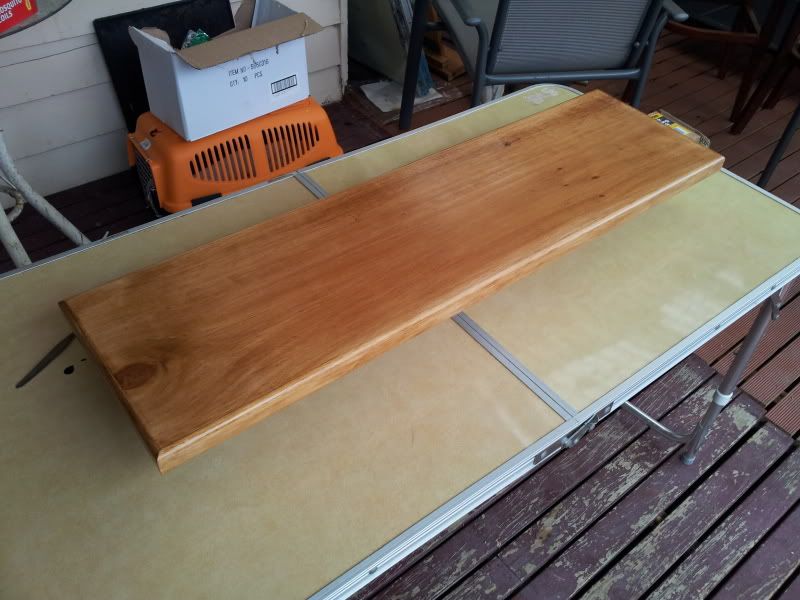

First coat of varnish. The last coat I did was ruined due to a fly landing on it. The ruined part is now covered by my monitor.

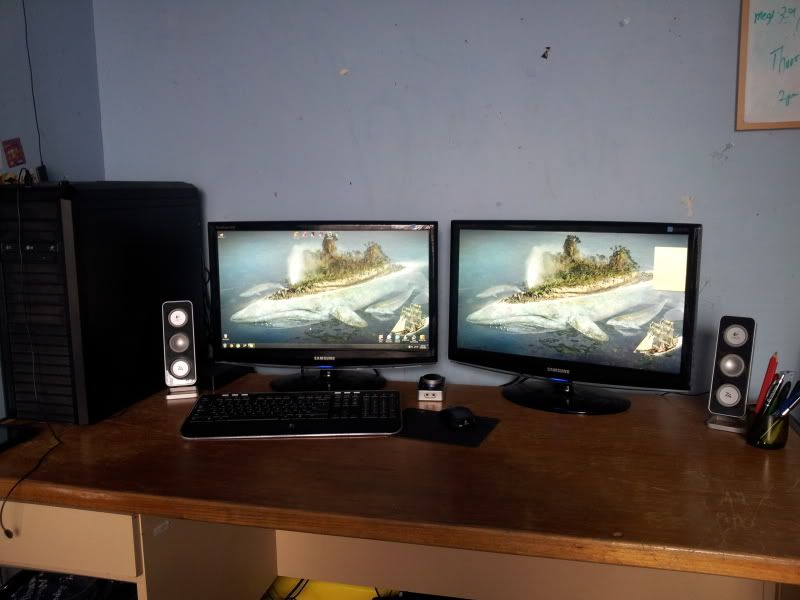

Before. The reason I made this is I was getting neck pains always staring 'down' at my monitors.

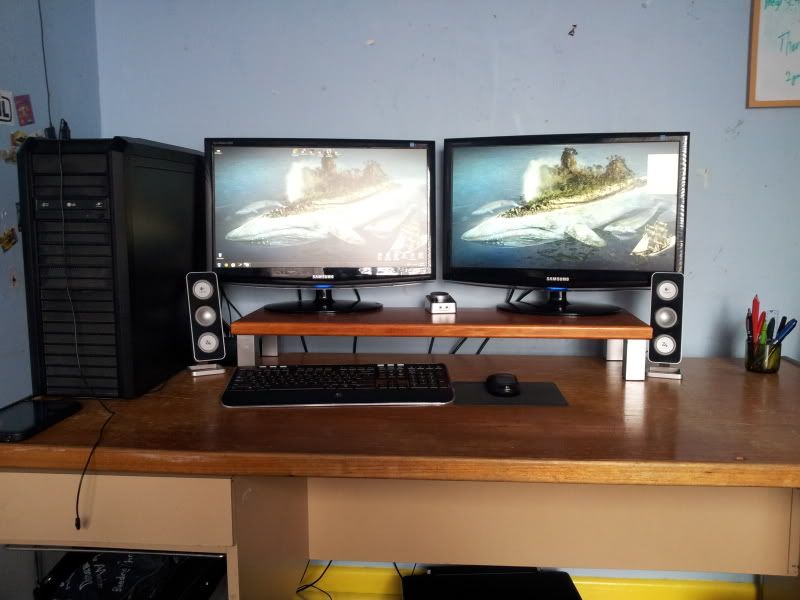

After. Much easier to use my computer. I also have the added benefit of extra desk space.


Not only easy but extremely fun to make.



Nice job!

My monitor stand is more ghetto:



If it is any consolation to you, it fucked the fly's day up a lot worse than it did yours...

.



Great project, I really like it!

Would appreciate a copy of that desktop background, looks very cool.



This is a lot better than my 2x2 ipad boxes stacked on top of eachother at work.

I really need a shelf like this.

Looks good!



Looks good mate.

I got my old man to make one out of jarrah for me. with my 27" imac and my u2410 sitting on it. suits my table very well, and i have room to shove my keyboard as well as a heap of usb hubs, hdds, etc under it.



That's excellent, looks great

I don't even bother with a monitor stand....I have a 30" monitor and desk level seems to be the right height anyways.

Any rubber feet on the four legs?



Been rocking that setup for about a year and a half now.
Mine's much more ghetto though



I have somthign similar for Lanning and for our 22" LCD TV in the bedroom



was gonna say "one word phonebook" trumped by a pic



Are those bits taped together?



Only did the taping to get rid of the jagged edges
They're attached with staples lol. Good ol' 8mm staples though, so they aren't moving any time soon
After seeing the OP's though... I'm gonna have to give mine a touching up!



Phew, otherwise it might have been a reasonable ghetto entry otherwise

Might wanna lacquer it up ; )



Nice work, far classier than mine which is a pair of jim bean black label tins



that looks really great, i'd pay money for that



I have a similar one.

Mine is just a piece of 1800x295 Laminex chipboard with legs. Helps that my desk is exactly 1800 too.



I was inspired by this idea so I went and built my own. Total cost $11.75


Click to view full size!


Click to view full size!

I cut the notch out so that I could have more room for using the keyboard, I was going to give it a coat of varnish but I'm not sure what my next proper desk will look like so for now I'll leave it as is and decide later


Click to view full size!



Nice job OP.

i reckon a nice piece of Celery Top Pine would of looked nice. But you did a top job



Thanks all, like I said it was a lot of fun.
Love all the other stands in this thread.



i made my first one back in 2001
got my flatmate who was a chippy to knock it up and i covered it with black contact
but it was only wide enough for my old IBM kb so had to be re purposed as a rad stand when i got the g15.


Click to view full size!

u can still see the cup hook in the top right corner that held the mouse cable
i still have it 11 years later and still use it, it is currently my hdd and psu shelf
so a quick trip to bunnings and scavenge a few shelves off a desk and i made a new pair


Click to view full size!
