Vaio Z128 Laptop + External GTX580 = BIG Grin! ;)

Discussion in 'Overclocking & Hardware' started by Phatboy69, Oct 3, 2011.

Page 1 of 2
  1. Phatboy69

    Phatboy69 Member

    Joined:
    Oct 10, 2010
    Messages:
    787
    Location:
    Sydney, Australia
    And now for something entirely different........... :)

    Take one....

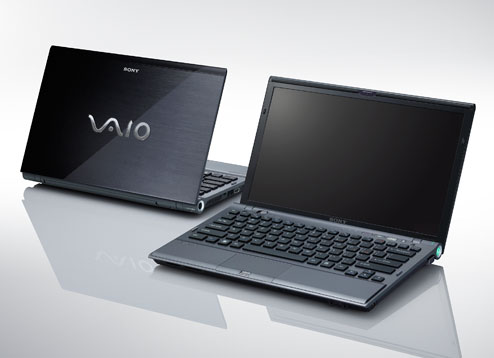

    Vaio Z128GG Laptop

    [​IMG]

    and one....

    PE4H-EC2C-ver2.4 Express card to PCIe adapter +

    [​IMG]

    and one....

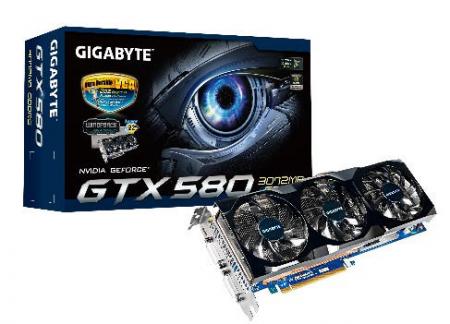

    Gigabyte GTX580ud

    [​IMG]

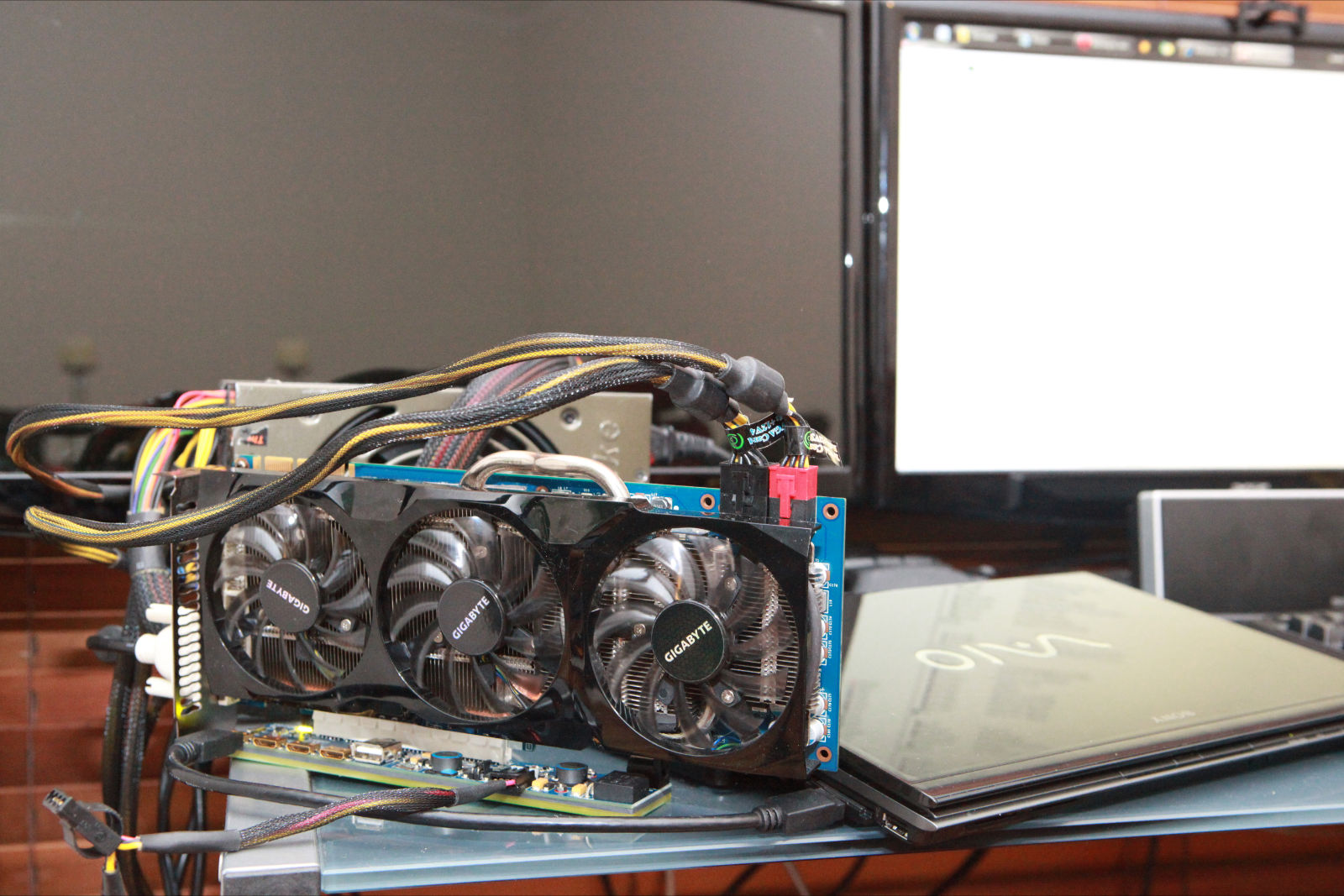

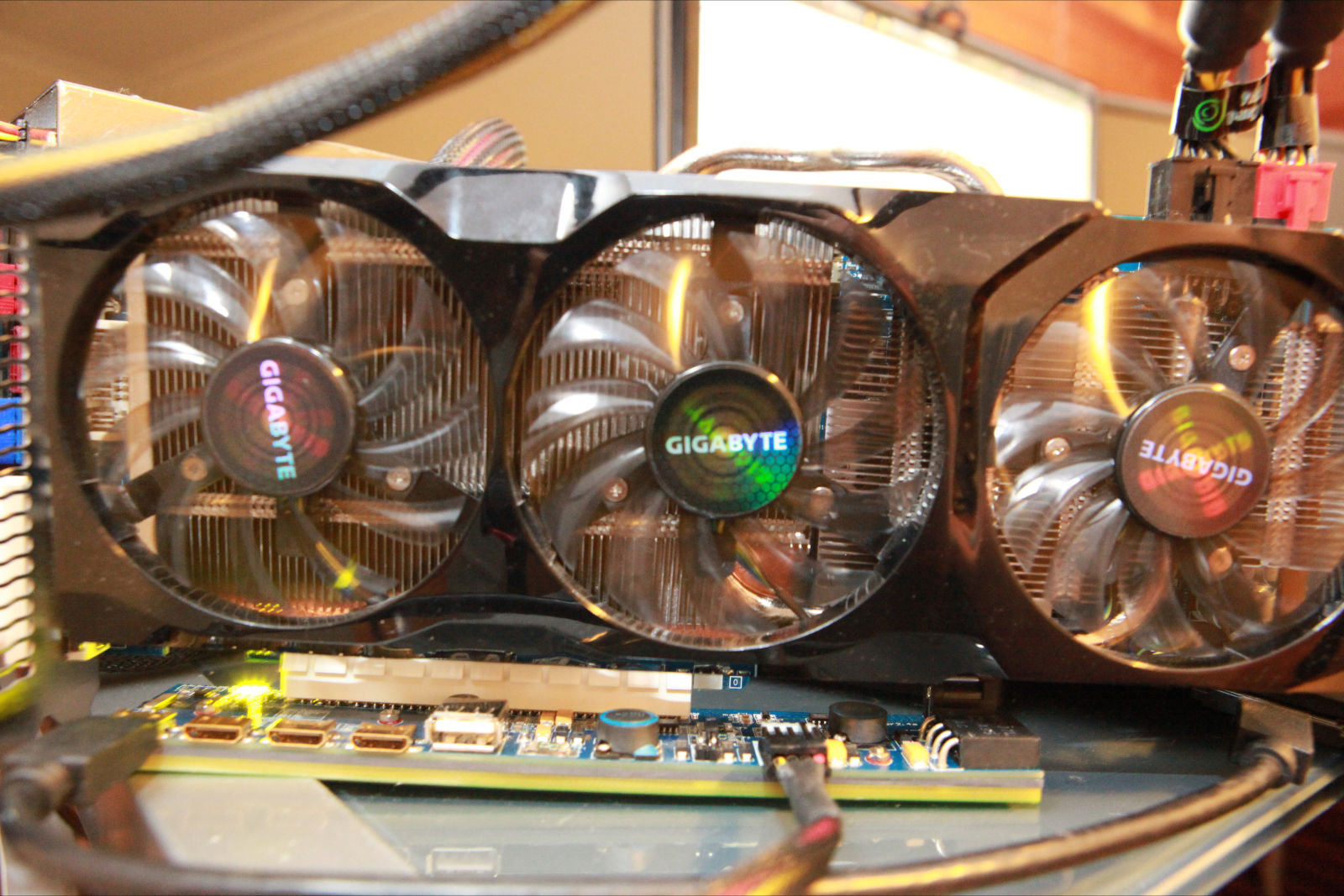

    Shaken not stirred...

    [​IMG]


    [​IMG]

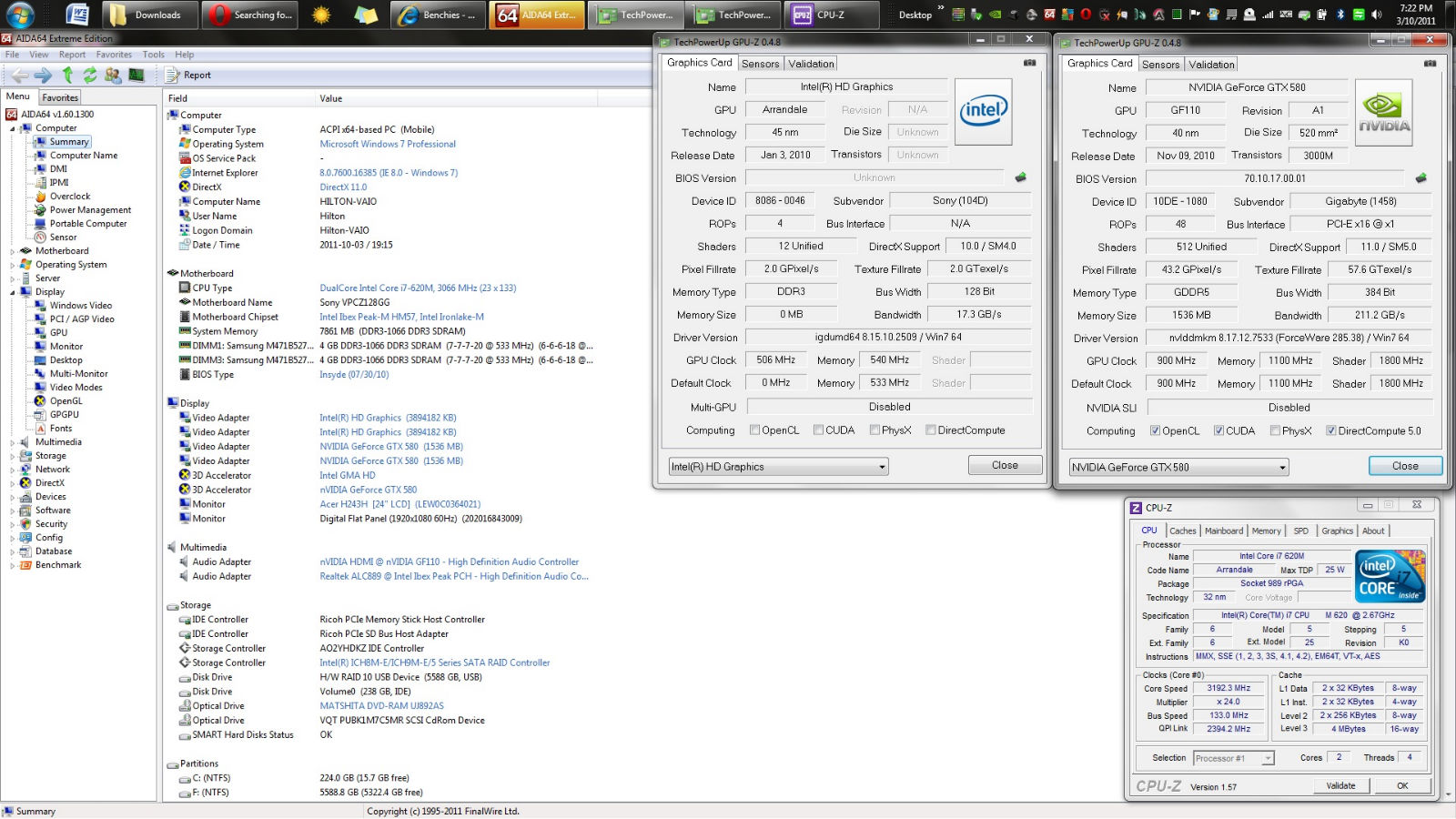

    And you get...


    [​IMG]


    [​IMG]

    Last edited: Jul 30, 2014
    Phatboy69, Oct 3, 2011
    #1
  2. scared&profane

    scared&profane Member

    Joined:
    Sep 12, 2005
    Messages:
    311
    thats awesome!!

    does it take much of a hit? i would have thought a 580 would be higher than that?

    scared&profane, Oct 3, 2011
    #2
  3. OP
    OP
    Phatboy69

    Phatboy69 Member

    Joined:
    Oct 10, 2010
    Messages:
    787
    Location:
    Sydney, Australia
    It only performs at about 60% over @ PCIE x1.opt (with Nvidia Optimus drivers)
    This is about PCIe x2 performance but it still shits all over the GT330M.

    $85US

    Everything you need to know is here...
    http://forum.notebookreview.com/gaming-software-graphics-cards/418851-diy-egpu-experiences.html

    WARNING its not a simple plug n play affair. You have to do a fair bit of driver hacking and bios hacking to get it to work for some systems, particularly for the Vaio Z because of it's gay Hybrid graphics and Sony's slack video driver support!

    Phatboy69, Oct 3, 2011
    #3
  4. scared&profane

    scared&profane Member

    Joined:
    Sep 12, 2005
    Messages:
    311
    sweet goat!!!

    i'm impressed. Nice work mate :)

    scared&profane, Oct 3, 2011
    #4
  5. Rezin

    Rezin Member

    Joined:
    Oct 27, 2002
    Messages:
    9,490
    Nice work. Where'd you get the PCI-E adapter, and what'd be the best bang-for-buck GPU, seeing as:


    Rezin, Oct 3, 2011
    #5
  6. OP
    OP
    Phatboy69

    Phatboy69 Member

    Joined:
    Oct 10, 2010
    Messages:
    787
    Location:
    Sydney, Australia
    Go to the link above it will tell you everything you need to know..
    A gtx580 is marginally faster than the 560TI which is the best bang for your buck.
    I just happen to have my cards lying around while I rebuild and wait for blocks.
    I'll probably replace it with a 570 or 560TI if I can find one.

    Phatboy69, Oct 3, 2011
    #6
  7. zero_velocity

    zero_velocity Member

    Joined:
    Sep 16, 2010
    Messages:
    2,883
    Location:
    QLD
    does it only allow output to the external screen? if so then :thumbdn: although would be good for a laptop -> desktop arrangement

    Edit: If only it could output to the laptop screen... would make a fantastic lan setup, make a little external enclosure that housed the GPU on the pcie PCB, maybe a few HDD's in there through eSATA or something. Its not so much the suers fault as it is the laptop maunfacturers, when will laptops start coming out with video input/output as a standard? I mean Ive seen a few laptops around that have HDMI in on them....

    Last edited: Oct 3, 2011
    zero_velocity, Oct 3, 2011
    #7
  8. OP
    OP
    Phatboy69

    Phatboy69 Member

    Joined:
    Oct 10, 2010
    Messages:
    787
    Location:
    Sydney, Australia
    Yes with the setup ive got it can render to the LCD.. You loose a bit of performance but its still faster than the builtin GT330M.

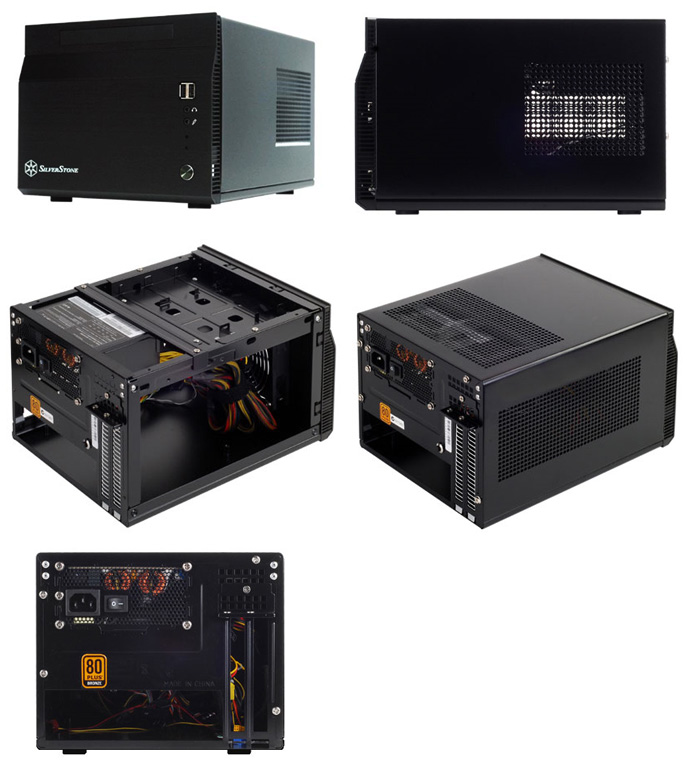

    You mean something like this? :) Its on the to do list after I finish rebuilding the main system. The external board has a USB port so technically you could put a USB drive inside the case with it.

    [​IMG]

    Last edited by a moderator: Sep 22, 2012
    Phatboy69, Oct 3, 2011
    #8
  9. zero_velocity

    zero_velocity Member

    Joined:
    Sep 16, 2010
    Messages:
    2,883
    Location:
    QLD
    Haha I mean exactly like that!

    zero_velocity, Oct 3, 2011
    #9
  10. OP
    OP
    Phatboy69

    Phatboy69 Member

    Joined:
    Oct 10, 2010
    Messages:
    787
    Location:
    Sydney, Australia
    For those wondering what real world performance is like.

    In Crysis 2 DX11 Ultra pak @ 1920x1080 I get min 24fps avg 35fps outdoors and 50FPS indoors. Compared with the GT330M struggling to do 20FPS on lowest settings @ 1600x900!

    My favourite flight sim gets 50FPS compared to 3FPS with the GT330M.

    18K Vantage compared to a desktop GTX580 @ 24k. :thumbup:

    Phatboy69, Oct 4, 2011
    #10
  11. theDarkHorse

    theDarkHorse Member

    Joined:
    Apr 16, 2009
    Messages:
    2,233
    Location:
    Sydney
    This is seriously an external GPU powering an internal laptop screen?

    SOLD. A THOUSAND TIMES.

    Where do I get the parts?

    theDarkHorse, Oct 4, 2011
    #11
  12. OP
    OP
    Phatboy69

    Phatboy69 Member

    Joined:
    Oct 10, 2010
    Messages:
    787
    Location:
    Sydney, Australia
    See above link for the info.
    Yes it renders to internal LCD but only on Nvidia Optimus capable laptops with the integrated Intel HD GPU. This site above gives all the info and options.

    Even without the Intel HD GPU you can still plug the external GPU into a monitor.

    Last edited: Oct 4, 2011
    Phatboy69, Oct 4, 2011
    #12
  13. OP
    OP
    Phatboy69

    Phatboy69 Member

    Joined:
    Oct 10, 2010
    Messages:
    787
    Location:
    Sydney, Australia
    And just to put that into perspective, my built in so called dedicated GT330M does Vantage P1825 and 5fps vs 18900 and 55fps for the external GTX580.. Thats a 1000% (10x) increase in performance.

    Phatboy69, Oct 4, 2011
    #13
  14. JDM_GT

    JDM_GT Member

    Joined:
    Mar 19, 2011
    Messages:
    143
    that is soo awesome, i think you have just started something, soon we will see heaps of these things going around, almost makes "gaming" laptops useless when compared to the price and performance. i love it.

    JDM_GT, Oct 4, 2011
    #14
  15. tiro_uspsss

    tiro_uspsss Member

    Joined:
    May 10, 2007
    Messages:
    2,442
    can you do it with an ATi/AMD card? ATi/AMD cards get affected less by PCIE bandwidth drop

    tiro_uspsss, Oct 4, 2011
    #15
  16. brayway

    brayway Member

    Joined:
    Nov 29, 2008
    Messages:
    6,936
    Location:
    New Zealand
    That is awesome!
    I looked into these a while ago, but then forgot about it :p
    Now i Wish my Macbook had the right slot :(

    brayway, Oct 4, 2011
    #16
  17. ALEXH-

    ALEXH- Member

    Joined:
    Jun 18, 2011
    Messages:
    189
    Location:
    Gold Coast
    Sweet jesus that's awesome. I also have a vaio F series, I should try one of my 6970s in it haha ;)

    ALEXH-, Oct 5, 2011
    #17
  18. zero_velocity

    zero_velocity Member

    Joined:
    Sep 16, 2010
    Messages:
    2,883
    Location:
    QLD
    Its mighty tempting for me too, except I cant justify it lol..... my desktop is 2x6970s... so theres home sorted, and since buying my laptop, Ive been to one lan.... however if you move around alot, or dont have a desktop, this thing would be boss!

    zero_velocity, Oct 5, 2011
    #18
  19. cyclone5

    cyclone5 New Member

    Joined:
    Oct 8, 2011
    Messages:
    1
    Think the NVidia cards are less affected by bandwidth drop on the Vaio Z's x1 PCIe lane as Nvidia cards have Optimus PCIe compression, but yes you can certainly do this with an ATI card, and the ATI solution works great for me as I'm more interested in multiple WQXGA monitors and not overly interested in gaming or outputting uncompressed FHD video.

    http://forum.notebookreview.com/sony/598920-z1-vidock-gtx-570-ftw-z2-pmd-killer-32.html

    Last edited: Oct 9, 2011
    cyclone5, Oct 9, 2011
    #19
  20. BitAddict

    BitAddict Member

    Joined:
    Jun 27, 2001
    Messages:
    2,907
    Location:
    Brisbane
    How so? The whole point of gaming laptops is that they are portable?
    I mean if I wanted a gaming desktop I would build a... gaming desktop?

    I think it's very cool (especially rendering to the internal LCD), and definitely a fun thing to do; but in terms of practicality... I'd rather a desktop any day.
    For shits and giggles however :thumbup::thumbup:

    BitAddict, Oct 9, 2011
    #20
